• Series: 3296


• Resistance Tolerance : 10%


• Mounting Style: PCB Mount


• Adjustment: Top Slot


• Number of Turns: Multiturn


• Resistance: 10K Ohms

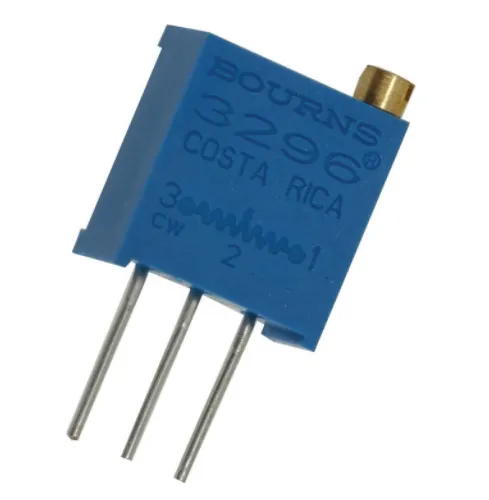

Trimmer/Trimpots is a high accuracy variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the trimpot is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and center pin outputs a variable voltage between 0v and Vcc as the rotary cermet is rotated. The potentiometer is easy to mount on a PCB and can be adjusted using a screwdriver. This potentiometer has a single turn, which can be used to preset a value.

Specification :

• Series: 3296


• Resistance Tolerance : 10%


• Mounting Style: PCB Mount


• Adjustment: Top Slot


• Number of Turns: Multiturn


• Resistance: 10K Ohms


• Power Rating: 500 mW (1/2 W)


• Termination Style: PC Pin
